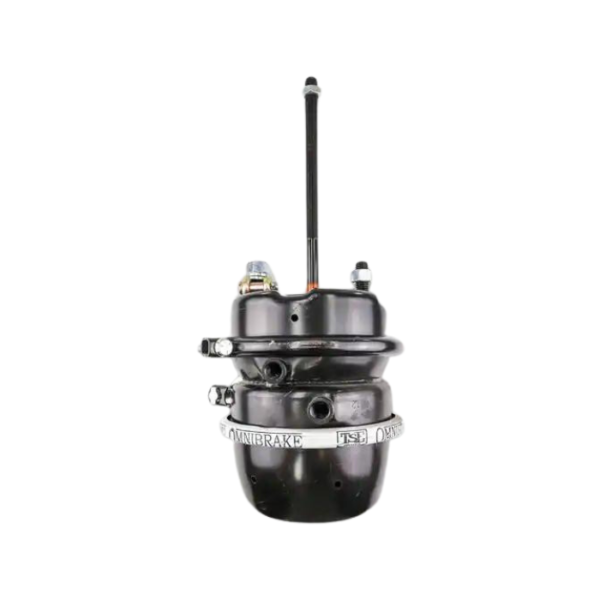

- Chamber-Brake, T3030, 300,WC225, 020 NA
- P/N: HDX1373030368
- Superseded P/N: HDX GC3030L
- Alliance P/N: ABP N42A 43030C3D
- Combination With Welded Clevis - Long Stroke - Size 30/30 - Square Bosses
- Superior Power Spring Technology With Advanced Powder Coating Process That Resists Corrosion And Fatigue
- Double O-ring Center Seal; Two O-rings For Positive Sealing And Plastic Bearings For Long Life
- World Class Diaphragm With High Quality Rubber Compound That Is Resistant To Heat And Has Superior Flexibility Even At -40°F
- Rugged Service Housing; 9 Gauge Steel, Powder Coated
- Orange Alert® Stroke Indicator
- Self-Piloting Dust Shield
- Technical Specs-
- Available Stroke 3.00", 76mm
- 9.9", 251mm = Length from Mounting Bracket to End of Spring Housing
- 7.4",187mm = Length of Piggyback
- 8.3", 211mm = Dimension at Rolled Spring Housing Flange
- 10.2", 259mm = Dimension at Service Clamp Band
- 4.75", 120.7mm = Stud Spacing
- 1.00" = Pushrod Length from Face of Service Housing
- 2.25" = Distance to Clevis Pin Centerline from Face of Service Housing
- 0° = Service Clamp Band Position
- 90°= Air Port Position
- Stud Type: 5/8-11 UNC Grade 5
- Stud Length: 1.50 in. (38.1mm)
- Pushrod Thread: 5/8-18 UNF
- Air Port Threads: 3/8-18 NPTF
- Maximum Working Air Pressure: 140 psi
- Weight- 21.9lbs. , 9.9kg
